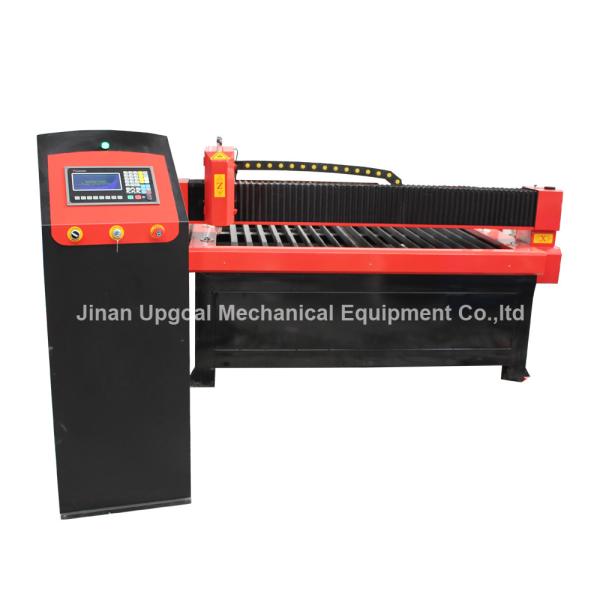

    Air Hose Plate Plasma Cutting Machine 1300*2500mm

    Ask Lasest Price
    Brand Name : UPGOAL
    Model Number : UG-1325P
    Certification : CE
    Price : USD 4000-USD 5100 FOB QINGDAO
    Payment Terms : T/T, L/C, Western Union, MoneyGram, D/A, D/P
    Supply Ability : 180 sets/month
    Delivery Time : Within 10 working days
    • Product Details
    • Company Profile

    Air Hose Plate Plasma Cutting Machine 1300*2500mm

    Air Hose Plate Plasma Cutting Machine 1300*2500mm


    Application

    Air hose cnc plasma cutting machine is one kind of high precision mechanical drive and thermal cutting combined high efficiency, high precision, high reliable cnc cutting equipment. Good man-machine interface lets the operating more easy, and cut all kinds of complicated shaped plate rapidly & accurately, especially suitable for middle & thin thickness nonferrous metal plate, stainless steel and carbon steel auto cutting. It adopts integrated modularization design, quickly install, convenient to move.

    Features

    1. The whole machine bed adopts welded steel structure and then precision-machined, whole tempering, fully eliminate welding stress, stable and reliable performance. Gantry and end beam adopts cast aluminum and then precision-machined, moving performance is good.


    2. Dual driving for Y-axis, XY-axis adopts high precision linear square guide rail, Hiwin, Taiwan, good oriented, high precision. Transmission is high precision helical rack and pinion, customized by the specialized manufacturer, surface carburizing quench, stable moving and high precision.


    3. LCD, English display. Has the notes of each operation button on the bottom of displayer in time, so just needs short training, then the buyer can do independent operation, more convenient and easy to use.


    4. Adopting China famous brand stepper motor and driver, stable performance, high response speed, good anti jamming capability.


    5. Special fume dust extractor,and down draft cutting table and slag storage device, create a good working environment.


    6. Special air hose software parameter figure database,easy to mater the processing, just following steps, select the graph, input the parameters, then generate the geometric figure, and start to cut.

    7. Easy to cut any reducing nipple figure, just input several size, then can cut all graphs.


    8. Supporting CAD, CAXA all kinds of design software.

    Technical Parameters

    Cutting width1300mm
    Cutting length2500mm
    Control system

    STARFIRE

    USB interface Offline control system

    Plasma power supplyAccording to plate thickness
    Cutting thicknessAccording to plasma power supply
    Traveling speed20000mm/min
    Cutting speedAdjusted according to material’s thickness
    Working tableTooth type cutting blade
    Fume extractorExhaust fan
    Guide railLinear square guide rail ( Hiwin, Taiwan)
    TransmissionXY-axis is with helical rack and pinion
    Driving systemStepper motor and driver
    Nesting softwareFastCAM
    Power supplyAC 380V±10%, 50/60Hz, three phases
    CertificateCE

    Reference Parts Photos




    Reference Samples


    Reference working videos

    https://www.youtube.com/watch?v=CH4JNBWQ-Fs&list=PLZ2SG5kTfvfP-BAdTY2xfM_SnbaMtOpSQ&index=3


    For more information, just feel free to contact us!
