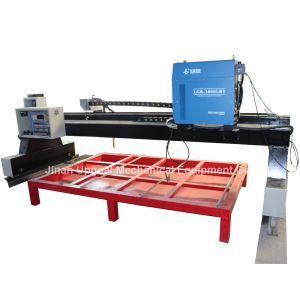

    Gantry Plasma Gutting Machine Flame Cutting Machine

    Ask Lasest Price
    Brand Name : UPGOAL
    Model Number : UG-4250P
    Certification : CE
    Price : USD 8010-USD 9100 FOB QINGDAO
    Payment Terms : T/T, L/C, Western Union, MoneyGram, D/A, D/P
    Supply Ability : 150 sets/month
    Delivery Time : Within 10 working days
    • Product Details
    • Company Profile

    Gantry Plasma Gutting Machine Flame Cutting Machine

    Gantry Plasma Gutting Machine Flame Cutting Machine


    Application

    Suitable for nonferrous metal sheet, stainless steel plate, carbon plate, aluminum plate, galvanized plate, white steel plate, titanium plate, etc materials automatic cutting.


    Application: Metal processing, machine manufacturing, auto spare parts, ventilate environment protection, steel structure shipbuilding electrical product’s shell processing, advertisements and signs, decoration, iron art garden, auto making, ship’s electrical parts& plates cutting.

    Features

    Gantry -cabinet crossbeam, good bearing capacity, suitable for wide span cutting. High efficiency dual type drive, impacted structure, whole tempering, fully eliminated welded stress, stable and reliable performance.


    Equipped with flame cutting, suitable for all kinds of thickness carbon steel, stainless steel and nonferrous metal plate’s precision cutting, improve the plate utilization, saving time and material. Can more 5-300mm carbon steel high-quality cutting.


    Different cutting system can meet with all kinds of flame, dusting and plasma processing purpose.

    Special customized system, which has gas control box and air circuit distribution system, with automatic firing device, flashback arrestor, safe and stable.


    CNC Control system


    1. LCD, English display. Has the notes of each operation button on the bottom of displayer in time, so just needs short training, then the buyer can do independent operation, more convenient and easy to use.

    2. Powerful anti-interference ability, moving stable and convenient.

    3. With cutting compensation function, setting the required workpiece size in computer, nesting and output, can adjust the slotting size in the control system according to needs, easy and efficient operation.

    4. Memory function after power failure and break point, no matter power failure or arc breaking during cutting, all can continue go forwarder or back-off following the cutting track.


    THC( Torch Height Controller)


    1. With high sensitivity THC, auto adjusting the best cutting distance, ensuring the workpiece accurately cutting.
    2. The torch has auto torch height controller, during cutting, the torch always keeps the same distance with the plate, extend the nozzle’s life time, and get the high quality cutting effect.

    3. Good anti jamming capability, stable performance


    Z-axis


    1. Z-axis is lead ball screw transmission type, high speed, convenient maintenance,suitable for all kinds thickness of plates.

    2. Can auto adjust the cutting distance for uneven plate, ensuring the same distance between the torch with plate, ensuring the cutting quality.

    3. Special torch height controller can prevent the torch crash the plates effectively, protect the torch and long time using.

    4. With anti-collision device, during the cutting, if torch crash accidentally, the machine will stop immediately, avoiding breaking the machine and thin plates is whiled away due to the cocking.


    Motor & Drive


    1. Adopting China famous brand stepper motor and driver, stable performance, high response speed, good anti jamming capability.

    2. All the machine’s signal wire is high flexible shielded wire, heat resistant, low temperature resistant, bend resistant.

    3. Control signal uses 24V voltage, with famous brand switch power supply.


    Nesting Software


    1. Austria FastCAM automatic programming and nesting software

    2. Auto programming, parts generated and nesting softare professionally drawing and cutting control

    With the post processor for graphic transformation and nesting.

    3. Realizing the edge-shared nested during cutting, saving time and materials.


    Plasma Power Supply


    HUAYUAN, China, 200A, or Hypertherm, USA

    Technical Parameters

    Track gauge(mm)30004000500060007000
    Working width (mm)22003200420052006200
    Control systemSTARFIRE or Fang Ling
    Flame torchSpecial cnc flame torch
    Plasma power supplyHUAYUAN, China or Hypertherm, USA
    Torch lifting distance(mm)200
    Traveling speed(mm/min)0-10000
    Cutting speed(mm/min)0-6000
    Flame cutting thickness(mm)5-300
    Plasma cutting thickness (mm)According to plasma power supply
    Fuel gas typeAcetylene or natural gas, propane
    FoundationH type steel( standard) or cement foundation

    Reference Parts Photos



    Reference Samples

    Reference working videos

    https://www.youtube.com/watch?v=CH4JNBWQ-Fs&list=PLZ2SG5kTfvfP-BAdTY2xfM_SnbaMtOpSQ&index=3


    For more information, just feel free to contact us!

    Jinan Upgoal Mechanical Equipment Co.,Ltd

    Supplying & Servicing for CNC Router/Laser Engraving Cutting Machine/Plasma Cutting Machine/Marking Machine/CNC Wood Lathe!
