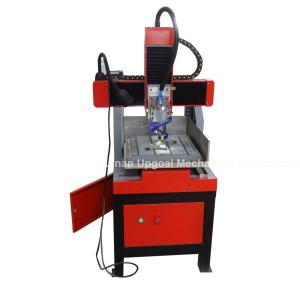

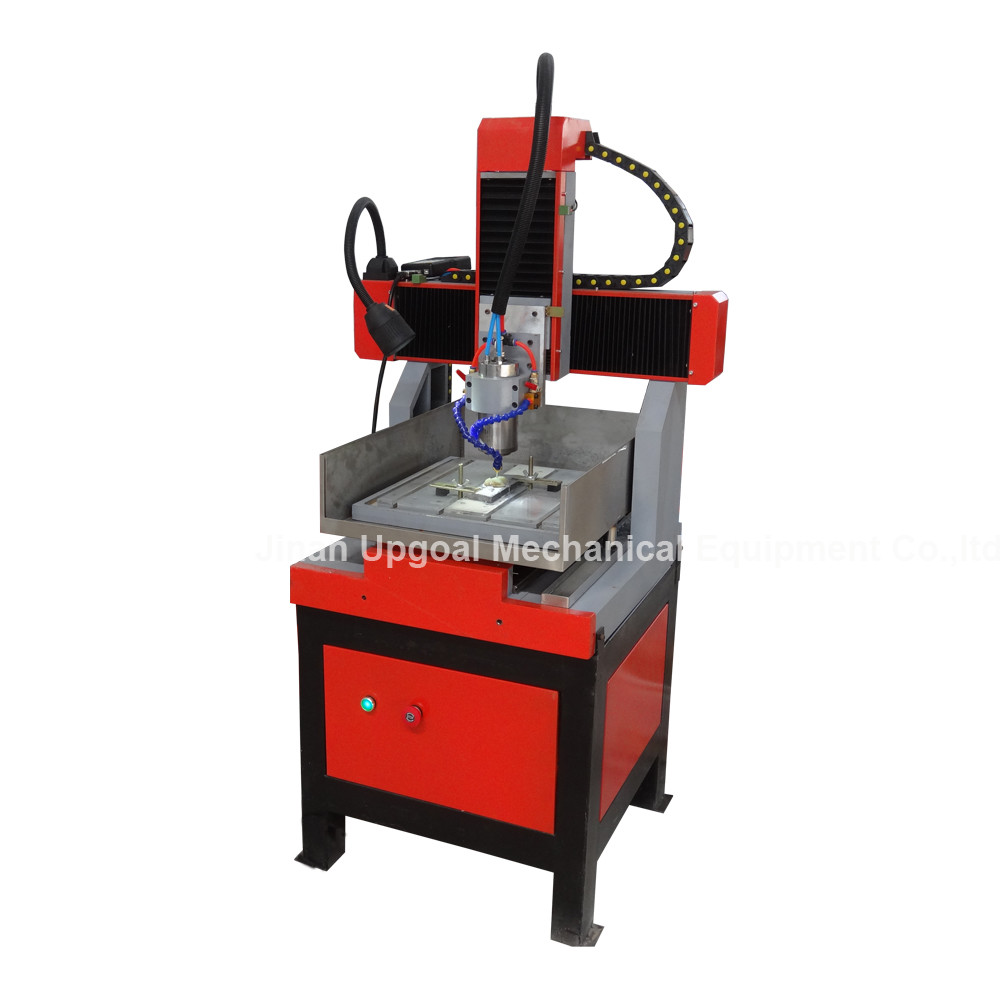

    Small Jade CNC Engraving Machine with DSP Offline Control

    Ask Lasest Price
    Brand Name : UPGOAL
    Model Number : UG-3030
    Certification : CE
    Price : USD 1500-USD 1780 FOB QINGDAO
    Payment Terms : T/T, L/C, Western Union, MoneyGram, D/A, D/P
    Supply Ability : 200 sets/month
    Delivery Time : Within 7 working days
    • Product Details
    • Company Profile

    Small Jade CNC Engraving Machine with DSP Offline Control

    Small Jade CNC Engraving Machine with DSP Offline Control


    Application


    Industry application: Wood work, Advertising Sign&Mark, Acrylic Cutting, Advertising plate, Led Lamp.

    Applicable material: Wood, Aluminum sheet, aluminum composite panel, dual-color plate, Mdf, Cristal plate, artifical marble and other metal and non-metal materials.

    Working Method: 3D embossment engraving, 2D engraing and Cutting, Bottom Milling.


    Features


    1. Whole cast iron materials, with good rigidity and stable.


    2. With platform moving type, stable and durable for long time using. Ensure high positioning accuracy.


    3. XYZ three axis are with Hiwin Linear square guide rail and block. Ballscrews transimission for all axis. Durable running with Higher accuracy.


    4. Large Power 2.2kw water cooling spindle which is applicable not only for cooper plate, aluminum plate, iron plate engraving but also for wood working. It can cut 20-30mm thickness acrylic by one time cutting. The fine engraving is more smoothy and clear by large power spindle.


    5. Dust-Proof desgin for XZ-axis, protect the guide rail and gears pinon racks from the Dust&Dirt, help to ensure machien working performance.


    6. Stainless steel water slot cooling system, ensuring the processing hard metal & stone.


    7. DSP offline system, when working no need use computer, just use DSP control cnc router working, easy to operate and more convenient.


    8. Rationalized placement of the electronic parts. Optimized heat dissipation effect. Adpot high quality electornic parts, minimizig fault rate, Adopt high flexiable cable and imported electronic parts, electrical design of whole machine is complied with the CE standard.


    9.With the function of break-point memory ,power failure resuming and automatic home/orgin correction function. The Working can be resumed afer unexpected situations or next day.effectively ensure long time working precision.


    10. Working Pause, speed adjust, working depth adjust at any time while working. Preview the 2D&3D working result With simulation fucntion. Variable Speed is suitable for varisou materials and industry.


    11. Favorable compatibility with various CAM softwares such as Type3/Artcam/Mastercam/Caxa. With intelligent over limit protection fucntion which can stop the mechanical collision due to unproper size given to the design.

    Technical Parameters

    Effective working area300(X)mm*300Y)mm*150(Z)mm
    MaterialsWhole cast iron materials
    Cooling systemStainless steel water slot cooling system
    Working tableAluminum alloy T Slot with PVC protection layer
    Moving typePlatform moving
    Guide railLinear square guide rail, Hiwin, Taiwan
    TransmissionLead ball screw for XYZ-axis
    Driving modeStepper motor and driver for XYZ-axis
    Spindle motor2.2kw water cooling
    Spindle speed0-24000rpm
    InverterSunfar
    Voltage

    AC 220V+ 10%, 50/60Hz, single phase or

    AC 380V ± 10%,50/60Hz, three phases

    Traveling speed>8000mm/min
    Engraving speed>6000mm/min
    Machine accuracy0.03mm
    Control systemDSP offline A11E
    Suitable softwareArtcam, Type3, Ucancam V9,etc
    Carving InstructionsG code *Uoo *mmg *plt HPGL
    Running environment temperature0-45 ℃
    Relative humidity30%-75%
    Tool calibrationAuto
    CertificateCE

    Reference Parts Photos


    Stainless steel water slot cooling system & DSP offline control system

    Reference Sample Photos

    Reference Working Videos

    https://www.youtube.com/watch?v=GHWgbTV1vQc&list=PLZ2SG5kTfvfMxCU76J-vND4BerDV3CRyE&index=5


    For more information, just feel free to contact us!
