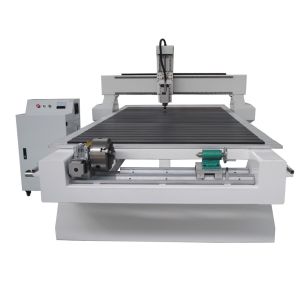

    4 Axis CNC Wood Engraving Machine with Rotary Axis Fixed in X-axis

    Ask Lasest Price
    Brand Name : UPGOAL
    Model Number : UG-1325T
    Certification : CE
    Price : USD 3360-USD 4600 FOB QINGDAO
    Payment Terms : T/T, L/C, Western Union, MoneyGram, D/A, D/P
    Supply Ability : 180 sets/month
    Delivery Time : Within 10working days
    • Product Details
    • Company Profile

    4 Axis CNC Wood Engraving Machine with Rotary Axis Fixed in X-axis

    4 Axis CNC Wood Engraving Machine with Rotary Axis Fixed in X-axis


    Application


    Woodworking products, advertising signs, MDF board, cutting engraving Photo frame, sculpture the sofa and the head of a bed, All kinds of wood door carvings, Large furniture relief engraving, Dalle hollow out and simple copper aluminum plastic board, etc


    Features


    1. Welded steel T type structure as a whole with vibration Temper aging treatment ensures no deformation for long time.Cast iron Gantry, the structure is strong and stable.


    2. Imported Hiwin, Taiwan Linear square guide rail with ball bearing slide block which ensure high weight capacity, high precision, smooth and steady running. Adopted imported precision ball screws, tools feeded with more accuracy.

    3. Large power 3.0kw air cooling spindle which is with stable performance and high torque, matched with high-performance Frequency inverter.

    4. Big power China famous brand stepper motor and driver for XYZ-axis, high precision, fast speed and more stable, dual motor Driven Y axis with traveling speed up to more than 25000mm/min.

    5. Helical gears pinion with racks type transmission for X and Y axis, higher running speed and efficiency, saving cost. Z- axis with precision ball screw, high precision and more durable.

    6.PCI NcStudio Control system with its characteristic pre-calculation rule, fully excavates potentialities of motors. Enable high processing speed, synchronization of Curve and straight line, more perfect curve working. Which is doing well in Various application industry for its excellent control technique, capable for not only batch production but also personalized fabrication.

    7. 4th Axis rotary axis, diameter 200mm, working length 800mm, fixed on the X-axis direction, no need to install & uninstall every time, saving time and improving efficiency, also no need to increase the Z-axis height, ensuring the machine stability.

    8. Favorable compatibility with various CAM softwares such as Type3/Artcam/Mastercam/Caxa. With intelligent over limit protection function which can stop the mechanical collision due to incorrect size given to the design.


    9. With the function of Break-point memory ,power failure resuming and automatic home/origin correction function, effectively ensure long time working precision.


    Technical Parameters

    Effective working area1300(X)mm*2500(Y)mm*200(Z)mm
    MaterialsMore thickness steel pipe welded machine holder bed, cast iron gantry
    Working tableAluminum T slot working table
    Moving typeGantry moving
    Guide railLinear square guide rail ( Hiwin, Taiwan)
    TransmissionHelical rack &pinion for X Y -axis, Lead ball screw for Z-axis
    Driving modeStepper motor and driver
    Spindle motor3.0kw air cooling
    Spindle speed0-18000rpm
    InverterDelta, Taiwan
    Voltage

    AC 380V+ 10%, 50/60Hz, three phases or
    AC 220V+ 10%, 50/60Hz, single phase

    Traveling speed>25000mm/min
    Engraving speed>12000mm/min
    Machine accuracy0.01mm
    Control systemPCI NcStudio for desktop computer
    Suitable softwareArtcam, Type3, Ucancam V9,etc
    Carving InstructionsG code *Uoo *mmg *plt HPGL
    Running environment temperature0-45 ℃
    Relative humidity30%-75%
    4th axisRotary axis, diameter 200mm, working length 800mm, reduction gear transmission
    Lubrication systemSemi-auto
    Tool calibrationAuto
    CertificateCE
