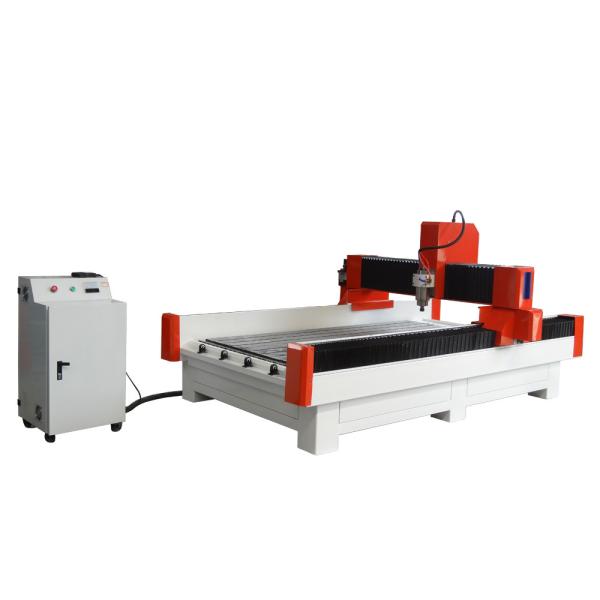

    CNC Stone Marble Granite Engraving Machine 1300*2500mm

    Ask Lasest Price
    Brand Name : UPGOAL
    Model Number : UG-1325
    Certification : CE
    Price : USD 4030-USD 5010 FOBQINGDAO/set
    Payment Terms : T/T, L/C, Western Union, MoneyGram, D/A, D/P
    Supply Ability : 180sets/month
    Delivery Time : Within 10-15 working days
    • Product Details
    • Company Profile

    CNC Stone Marble Granite Engraving Machine 1300*2500mm

    CNC Stone Marble Granite Engraving Machine 1300*2500mm


    Application


    Mainly used for natural marble, granite, artificial stone, tombstone, milestone, tile, glass, bluestone,sandstone, crystal, microlite,mural, village tablet inscription, decoration skirting line,...such relief engraving, singlet line, character, flat pattern engraving, with rotary axis, can for stone cylinder,breast board, handrail, dragon columns,figure of Buddha...engraving.


    Features


    1. Adopted T type steel machine bed, strong rigidity, strong dynamics, ensuring the machine long time high speed moving and no deformation. Integrated stainless steel water slot with working table & machine body more convienient for water collection and circulation.


    2. XYZ-axis adopted imported Hiwin, Taiwan linear square guide rail, high precision,fast speed and good wear resistance.


    3. Heigh precision helical rack and pinion transmission for XY-axis,fast speed and powerful. Z-axis with double nut lead ball screw transmission, good weight capacity and stable moving.


    4. Powerful 5.5kw water cooling spindle, easy to engraving all kinds of stone, not only fine engraving, but also the bottom smooth and clear.


    5. Delta servo motor and driver for XYZ-axis, high precision, faster speed and more stable than stepper motor and driver. Dual motor and driver for Y-axis, ensuring the stable moving.


    6. DSP offline control system, when working no need computer, more convenient and easy to operate.

    7. Bothway tools cooling system, effectively improve tools life time.


    8. Special dustproof, waterproof device, effectively keep the transmission part cleaning and rust protection, more easy maintenance.


    9. Auto lubrication sysetem, more convenient and easy for whole machine lubrication.


    10. Auto tool calibration, accurate and convenient for Z-axis 0 point setting.


    11.Special several processing 0 point saving method.


    12. Memory of break point and power failure, ensuring continue working after breaking point or next time processing.


    13. Advanced file processing function, can timely correct faults, and good compatibility for Type3/Artcam/Mastercam/Caxa such file. Advanced three dimensional curve forcast algorithm, stable broken line, ensuring the curve moving speed & precision.


    Technical Parameters


    Effective working area1300(X)mm*2500(Y)mm*350(Z)mm
    MaterialsMore thickness T type steel pipe welded machine holder bed, cast iron gantry
    Working tableAluminum T slot
    Cooling systemStainless steel water slot cooling
    Moving typeGantry moving
    Guide railLinear square guide rail ( Hiwin, Taiwan)
    TransmissionHelical rack &pinion for X Y -axis, Lead ball screw for Z-axis
    Driving modeDelta servo motor and driver for XYZ-axis
    Spindle motor5.5kw water cooling
    Spindle speed0-24000rpm
    InverterDelta
    Voltage

    AC 380V+ 10%, 50/60Hz, three phases or

    AC 220V+ 10%, 50/60Hz, single phase

    Traveling speed>28000mm/min
    Engraving speed>15000mm/min
    Machine accuracy0.01mm
    Control systemDSP offline control system
    Suitable softwareArtcam, Type3, Ucancam V9,etc
    Carving InstructionsG code *Uoo *mmg *plt HPGL
    Running environment temperature0-45 ℃
    Relative humidity30%-75%
    Lubrication systemAuto
    Tool calibrationAuto
    CertificateCE

    Reference Parts Photos


    5.5kw water cooling spindle



    Integrated stainless steel water slot cooling system



    DSP offline control system & Delta servo driver


    Auto lubrication



    Reference Samples Photos



    Reference Working Videos


    https://www.youtube.com/watch?v=CMk4p_wdiAU&list=PLZ2SG5kTfvfMxCU76J-vND4BerDV3CRyE&index=4

    https://www.youtube.com/watch?v=rWCPU8RtI2I&list=PLZ2SG5kTfvfMxCU76J-vND4BerDV3CRyE&index=3


    For more information, just feel free to contact us!
