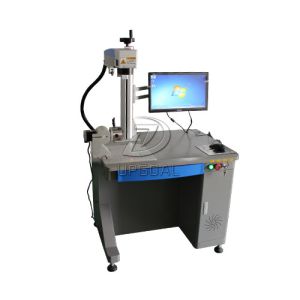

    20W Aluminum Material Fiber Laser Marking Machine with Rotary Clamp

    Ask Lasest Price
    Brand Name : UPGOAL
    Model Number : UG-20FM
    Certification : CE
    Price : USD 3100-USD3800 FOB QINGDAO
    Payment Terms : T/T, L/C, Western Union, MoneyGram, D/A, D/P
    Supply Ability : 200 sets/month
    Delivery Time : Within 7 working days
    • Product Details
    • Company Profile

    20W Aluminum Material Fiber Laser Marking Machine with Rotary Clamp

    20W Aluminum Material Fiber Laser Marking Machine with Rotary Clamp


    Application

    Electronic and communications products, integrated circuit chip, computer parts and electrical appliance,all kinds of precision component, hardware tool, instrument and meter, aerospace and astronautics, jewelry, horologe, gift, office supply, trademark signs, sanitary ware, kitchen ware, plastic product, metal ornament, fastener, eyeglasses frame, , sanitary ware fittings, tableware, food, beverage and alcohol & tobacco,etc all kinds of area graph and characters’s, marking, mass production, marking clear and beautiful, never disappear.

    Features

    1. Adopting fiber laser to output laser, high electro-optic conversation rate, compact size, good quality velocity of light. The life time of fiber laser is more than 100,000 hours, if each year working 365 days, each day working 24 hours, then the life time is more than 10 years, are the real maintenance free, saving the later period maintenance cost.

    2. Fiber laser marking machine has good facula mode, more thin single line, suitable for hyperfine processing, high system integration, less malfunction, are the real suitable for industrial processing area.
    3. Marked graph and characters is permanent , will not regression due to friction.

    4. No consumable, low power consumption, whole air cooling, no need water cooling, total machine power less than 1000W.

    5. Not influenced by severe environment and bag weather, can continue working with accumulator when power failure.

    6. One piece design of control cabinet and marking table, small cover area.

    7. High perpendicularity of lifting device and marking table, suitable for small workpiece fine marking.

    8. Can for bar code, graph, characters, QR code, ect marking, supporting PLT, DXF, BMP such format, can use SHC, TTF word stock; System can auto encoding, auto marking serial number, batch number, and date, ect.

    Technical Parameters

    Maximum output laser power20W, Raycus
    Wave length of laser1064nm
    Marking scope200*200mm
    Laser sourcesFiber module
    Laser HeadHigh speed scanning head
    The minimum focus facula diameter20μm
    Minimal character0.01mm
    Control systemOriginal Ez cad controller with USB port
    Marking depth0.01-5mm( depends on different materials)
    Marking line width0.01-0.1mm
    Marking speed≤7000mm/s
    Laser repetition frequency20kHz~80kHz
    Cooling methodForce-air Cooling
    Power supplyAC 220V±10%,50/60Hz, single phase
    Support formatPLT, BMP, DXF, JPG, TIF, AI etc
    Process MaterialAll kinds of metal and part of Non-metal Materials
    CertificateCE

    Reference Parts Photos

    Marking head &20W Raycus fiber laser


    20W Raycus fiber laser

    Original EzCad control system

    Original EzCad control system

    Working table & rotary axis

    Working table & rotary axis

    Double red dot positioning

    Double red dot positioning

    Lenovo desktop computer

    Lenovo desktop computer

    Foot switch & air switch

    Foot switch & air switch

    Light /E-stop/Red Pointer & Rotary Axis clamp

    Light /E-stop/Red Pointer & Rotary Axis clamp

    Accessories & packing

    Accessories & packing


    Reference Sample Photos


    For aluminum plate & cylinder marking


    Reference working videos

    https://www.youtube.com/watch?v=tq1Fqw0zPcI&index=41&list=PLZ2SG5kTfvfMxiizViKGOCVDaBm-0mBJG



    For more information, just feel free to contact us!
