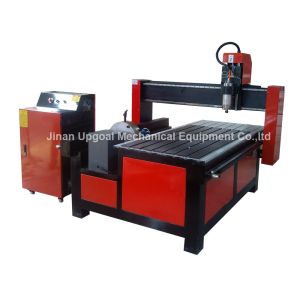

With Underneath #300mm Rotary Axis &T slot Working Table CNC
Engrraving Machine
Application
Woodworking products, advertising signs, MDF board, cutting
engraving Photo frame, sculpture the sofa and the head of a bed,
All kinds of wood door carvings, Large furniture relief engraving,
Dalle hollow out and simple copper aluminum plastic board, etc
Features
1. Welded steel T type structure as a whole with vibration Temper aging treatment ensures no
deformation for long time.
2. Imported Hiwin, Taiwan Linear square guide rail with ball bearing slide block which ensure high weight capacity,
high precision, smooth and steady running. Adpot imported precision
ball screws, tools feeded with more accuracy.
3. Large power 3.2kw water cooling spindle which is with stable performance, low noise and high torque,
matched with high-performance Frequency inverter.
4. China powerful 86BYGH4650B stepper motor and driver for XYZ-axis, high precision, fast speed and more stable, dual motor Driven Y
axis with traveling speed up to more than 25000mm/min.
5. Helical gears Pinion with Racks type transmission for X and Y axis, higher running speed and efficency, saving cost. Z- axis with precision ball screw, high precision and more durable.
6.DSP offline control system with USB interface which is completely off from Computer. More Humanized desgin with
Simple and Convenient Handle type operation.With pre-calculation rule, fully excavating potentialities of
motors. Enable high processing speed, synchronization of Curve and
straight line, more perfect curve working and Spindle startup and
stop automatically.
7. Within underneath diameter 300mm, working length 1200mm, reduction
gear transmission rotary axis, no need to install & uninstall each time, saving time and labor,
improving efficiency.
8. Aluminum T slot working table, working area 1000*1300mm for flat engraving.
9. Semi-auto lubrication system more convenient for maintenance.
10. Favorable compatibility with various CAM softwares such as Type3/Artcam/Mastercam/Caxa. With intelligent over limit
protection function which can stop the mechanical collision due to
incorrect size given to the design.
11. With the function of Break-point memory ,power failure resuming and automatic
home/origin correction function, effectively ensure long time working precision.
Technical Parameters
| Effective working area | Flat working: 1000(X) *1300(Y)*200(Z)mm Rotary axis: diameter 300mm, working length 1200mm |
| Materials | More thickness steel pipe welded machine holder bed, cast aluminum
gantry |
| Working table | Aluminum T slot working table |
| Moving type | Gantry moving |
| Guide rail | Linear square guide rail ( Hiwin, Taiwan) |
| Transmission | Helical rack &pinion for X Y -axis, Lead ball screw for Z-axis |
| Driving mode | Stepper motor and driver for XYZ-axis |
| Spindle motor | 3.2kw water cooling |
| Spindle speed | 0-24000rpm |
| Inverter | Sunfar |
| Voltage | AC 380V+ 10%, 50/60Hz, three phases or AC 220V+ 10%, 50/60Hz, single phase |
| Traveling speed | >25000mm/min |
| Engraving speed | >12000mm/min |
| Machine accuracy | 0.03mm |
| Control system | DSP offline control system |
| Suitable software | Artcam, Type3, Ucancam V9,etc |
| Carving Instructions | G code *Uoo *mmg *plt HPGL |
| Running environment temperature | 0-45 ℃ |
| Relative humidity | 30%-75% |
| Lubrication system | Semi-auto |
| Tool calibration | Auto |
| Certificate | CE |
Reference Parts Photos
Reference Sample Photos
Reference Working Videos
https://www.youtube.com/watch?v=bf95oZ8rldM&list=PLZ2SG5kTfvfO9SdZ278PiNnjV8Gku9Aua&index=1
For more information, just feel free to contact us!
